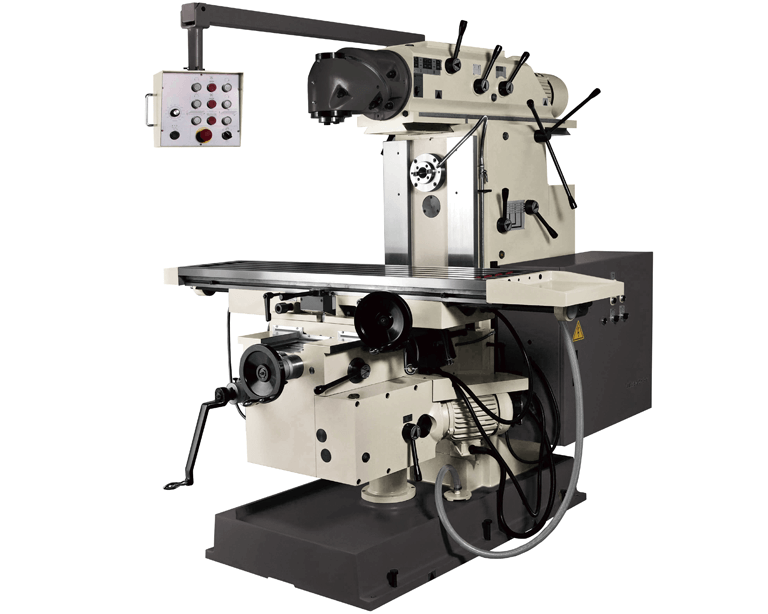

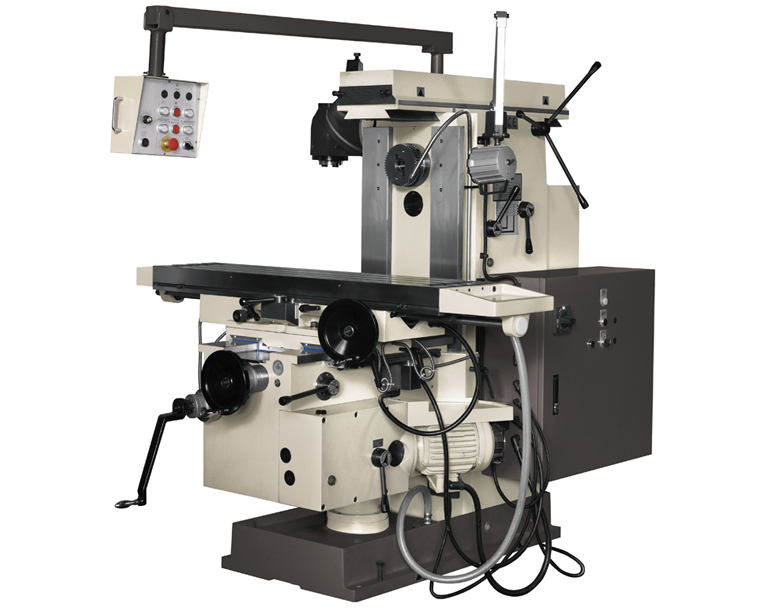

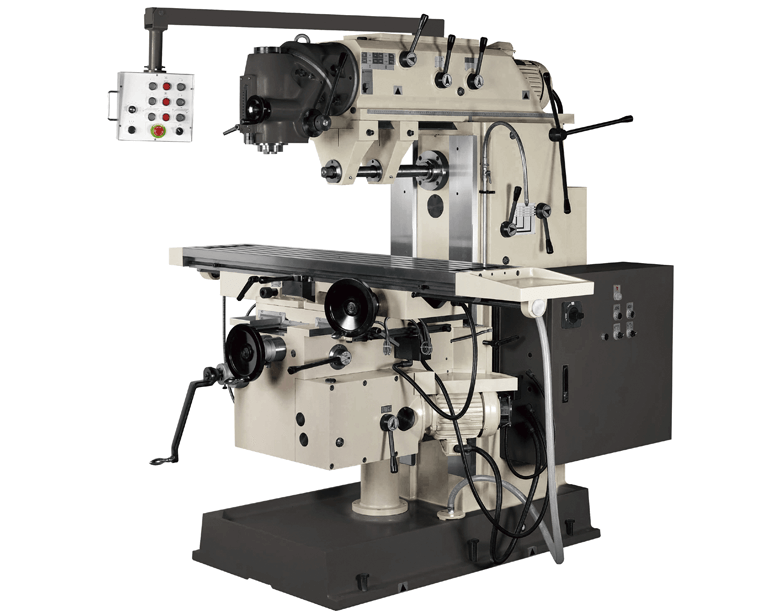

Universal Milling Machine

YM-2500M

YM-2500U

YM-250UM

Inquiry E-Catalog

Specification:

  • Rapid traverse on X, Y, Z axis
  • Via inverter variable feeding on X, Y, Z axis
  • Table swivels: ±45 degree
  • All square slide way & dovetail way are bigger and stronger
  • All gear and shafts are hardened and ground
TECHNICAL SPECIFICATIONS UNITS YM-2500UM YM-2500M YM-2500QM YM-2500U YMS-2500U
Tabel
Table Area mm 1500x350 (59x13.7") 1500x350 (59x13.7") 1500x350 (59x13.7") 1500x350 (59x13.7") 1300x300
Number of T Shaped Slots 5-16h7 5-16h7 5-16h7 5-16h7 3-16h7
Distance Between T Shaped Slots mm 60 60 60 60 70
Rotary Movement Of Table In Both Direction 45" 45" 45" 45" 45"
Traverse
Automatic Longitudinal mm 1150 (46") 1150 (46") 1150 (46") 1150 (46") 950mm
Automatic Cross mm 400 (15 3/4”) 400 (15 3/4”) 400 (15 3/4”) 400 (15 3/4”) 380
Automatic Vertical mm 500 (20”) 500 (20”) 500 (20”) 500 (20”) 450mm
Available Distance From Spindle to Overarm mm 155 (6”) 155 (6”) 155 (6”) 155 (6”) 155
Spindle (Horizontal)
Housing of The Taper Spindle ISO-40/50 ISO-40/50 ISO-40/50 ISO-40/50 ISO-40
Diameter of The Main Shaft Nose mm 88.88-128.57 88.88-128.57 88.88-128.57 88.88-128.57 88.88
Milling Arbor Oliameter mm 27 or (1”) 27 or (1”) 27 or (1”) 27 or (1”) 27
Number of Speeds of The Spindle (R.P.M.) 12(40-1800) 50hz 12(40-1800) 50hz 12(40-1800) 50hz 12(40-1800) 50hz 12(50-1700) 50hz
Feeds
Longitudinal and Cross Feeds mm 10-1208 (0.4-4.7”) 10-1208 (0.4-4.7”) 10-1208 (0.4-4.7”) 10-1208 (0.4-4.7”) 10-1208
Vertical Feed mm 5-604 (0.2-23”) 5-604 (0.2-23”) 5-604 (0.2-23”) 5-604 (0.2-23”) 5-604
Rapid Traverse
Longitudinal and Cross mm/min 1208(47”) (60hz) 1208(47”) (60hz) 1208(47”) (60hz) 1208(47”) (60hz) 1208
Vertical m/min 604(23”) 604(23”) 604(23”) 604(23”) 5-604
Puissance
V-Belts 4 4 4 4 4
Main Motor Hp 7.5 7.5 7.5 7.5 5
Feed Motor Hp 2.5 2.5 2.5 2.5 2.5
Cooling
Cooling-Pump Hp 1/8 (0.10) 1/8 (0.10) 1/8 1/8 (0.10) 1/8
Motorized Overarm
Housing of The Taper Spindle ISO-40/50 ISO-40/50 ISO-40/50 - -
Number of Speeds 12 12 - - -
Speed Range (R.P.M.) (35-1600) 50hz (35-1600) 50hz Variable Speed (70-3600) - -
HPower Hp 5.5 5.5 5 - -
Weight
Maximum Weight On Table kg 700 (1540lb) 700 (1540lb) 700 (1540lb) 700 (1540lb) 500
Net Weight kg 3200 (7040lb) 3200 (7040lb) 3200 (7040lb) 3100 (6820lb) 2500
Gross Weight With Seapacking Case kg 3500 (7770lb) 3500 (7770lb) 3500 (7770lb) 3400 (7480lb) 2700
Cubical Measure of Packing m 1.8x2.3x2.3 (70x89x88") 1.8x2.3x2.3 (70x89x88") 1.8x2.3x2.3 (70x89x88") 1.8x2.3x2.3 (70x89x88") 1.7x2.2x2.2
  • Chip tray
  • Auto ways lube unit
  • Working light
  • Clamping kit
  • Hyd. Clamping vise 8
  • Hyd. Clamping vise 6”
  • Milling vise 8”
  • Milling vise 6”
  • Rotary table 12”
  • Rotary table 10”
  • Universal dividing head BS-2(with 6” 3 Jaw chuck)
  • 10HP Motor without brake
  • Brake motor with Hor. (7.5 HP )
  • Brake motor with Hor. (7.5 HP ) & Ver.(5.5HP)
  • Brake motor with Hor. (10 HP ). & Ver.(5.5HP)
  • Pneumatic power draw bar #50 for Hor.
  • Pneumatic power draw bar #50 for Ver.
  • Pneumatic power draw bar #40 for Hor.
  • Pneumatic power draw bar #40 for Ver.
  • D.R.O. 3 axis (Brand is FAGOR-Table size : 1500 x 350mm)
  • D.R.O. 3 axis (Brand is FAGOR-Table size : 1850 x 350mm)
  • D.R.O. 3 axis (Brand is FAGOR-Table size : 1300 x 300mm)
  • Variable speed : Horizontal spindle (For 7.5 HP)---without DRO
  • Variable speed : Horizontal spindle (For 10 HP)---without DRO
  • Variable speed : Vertical spindle (For UM or M) ---without DRO
  • Variable speed : Vertical spindle(For QM)
  • Ball screw for “X” Axis (Table size :1500mm)
  • Ball screw for “X” Axis (Table size :1850mm)
  • Ball screw for “Y” Axis
  • Long Table : 1850 x 350mm
  • 27mm or 1" Long Horizontal ISO#40 milling arbor
  • Manual draw bar for Vertical and Horizontal
  • Coolant pump & coolant system
  • Tool box and service tools
